70w 12v Solar Panel High Efficiency Poly Module Rv Marine Boat Off Grid

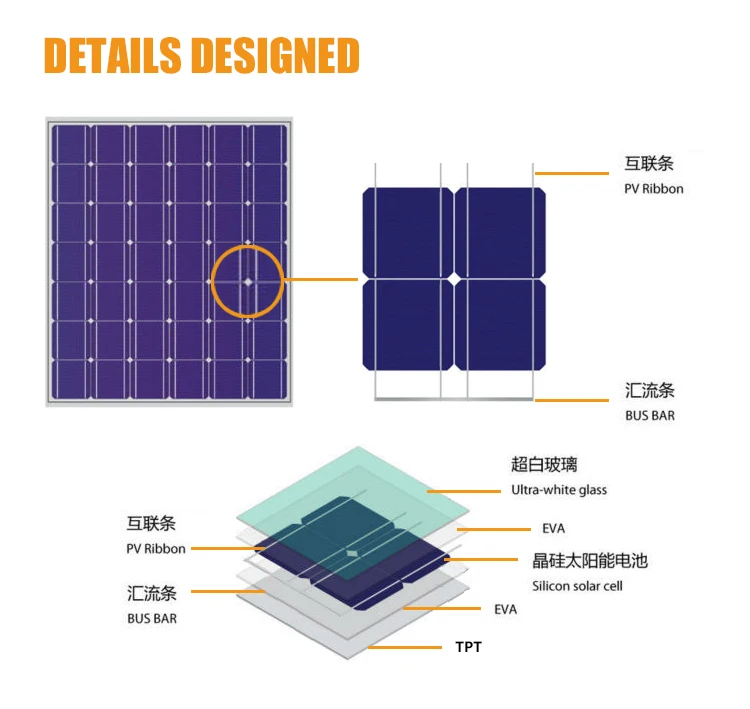

The high performance cells are encapsulated in EVA (ethylene-vinyl-acetate) & placed between high transparent low iron tempered glass & a durable TPT (tedlar-polyester-tedlar) back sheet. The panels are framed using heavy-duty anodized aluminum frames, pr
  • Model CS-P70-18
  • Size 780*678*30mm
  • Capacity 70w
  • Price $35.00 ~ $0.00
Inquiry PDF Format
  • Maximum power (Pmax): 70W
  • Voltage at Pmax (Vmp):17.2V
  • Current at Pmax (Imp): 4.07A
  • Open-circuit voltage (Voc):21.6V
  • Short-circuit current (Isc): 4.55A
Products Information
 solar panel factory polycrystalline fotovoltaichni pv poly 70w solar panel with CE/certificate
Mechanical characteristics(70W Panel)
Cell Type    Poly-crystallinie 156*78mm
No.of Cells       36(4*9)
Dimensions 780*678*30mm
Weight 6.1kgs
Front Glass 3.2mm high transmission,low iron,tempered glass
Frame  Anodized Aluminium Alloy
Junction box IP65 Rated
Output cables 2.5mm2 length 90cm,MC4 connector
Quantity 5 pcs/ctn
ELECTRICAL DATA (STC)
Peak Power Watt-PMAX  (Wp)      50 55 60 65 70 75 80 85 90 95 100
Power Output Tolerance-PMAX  (W) 0±3%
Maximum Power Voltage-VMPP (V) 18.41 18.58 18.29 18.44  18.05 18.32 18.56 18.72 18.83 18.83 18.57
Maximum Power Current-IMPP  (A) 2.72 2.97 3.29   3.53  3.88 4.12 4.32  4.55 4.78 5.19 5.39
Open Circuit Voltage-VOC(V) 22.10 22.30 21.95 22.13  21.66  21.88 22.28 22.47 22.60 21.99 22.99
Short Circuit Current-ISC(A) 2.89 3.15 3.49   3.75   4.12 4.37 4.58 4.83 5.07 5.51 5.72
Cells Efficiency (%) 16.31  4.25 16.31 17.67  16.31 17.48 16.31 16.51 17.48 16.60 16.31
